Latvia, Riga, 2026, Automatic Sheet Metal Deburring Machine

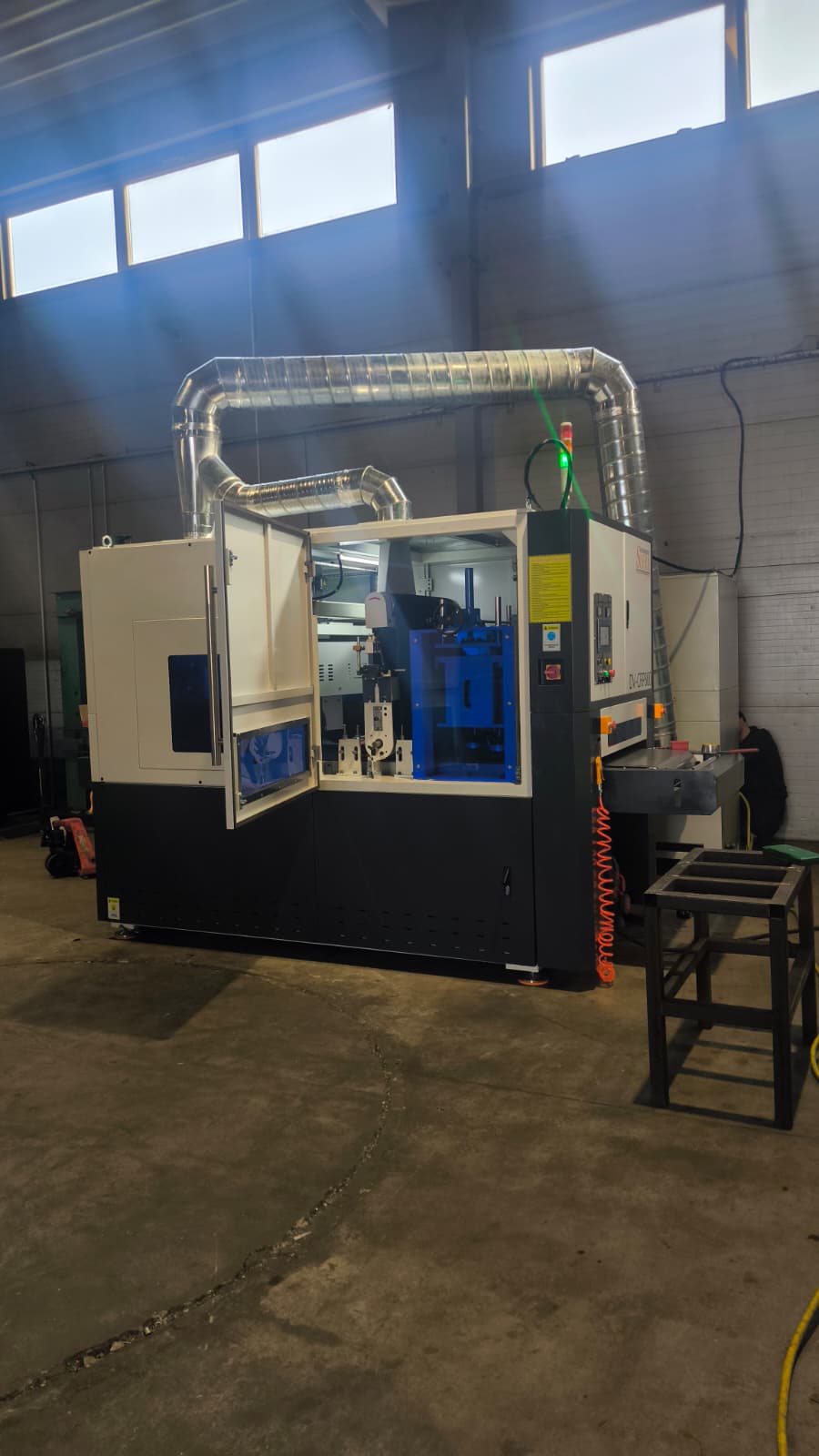

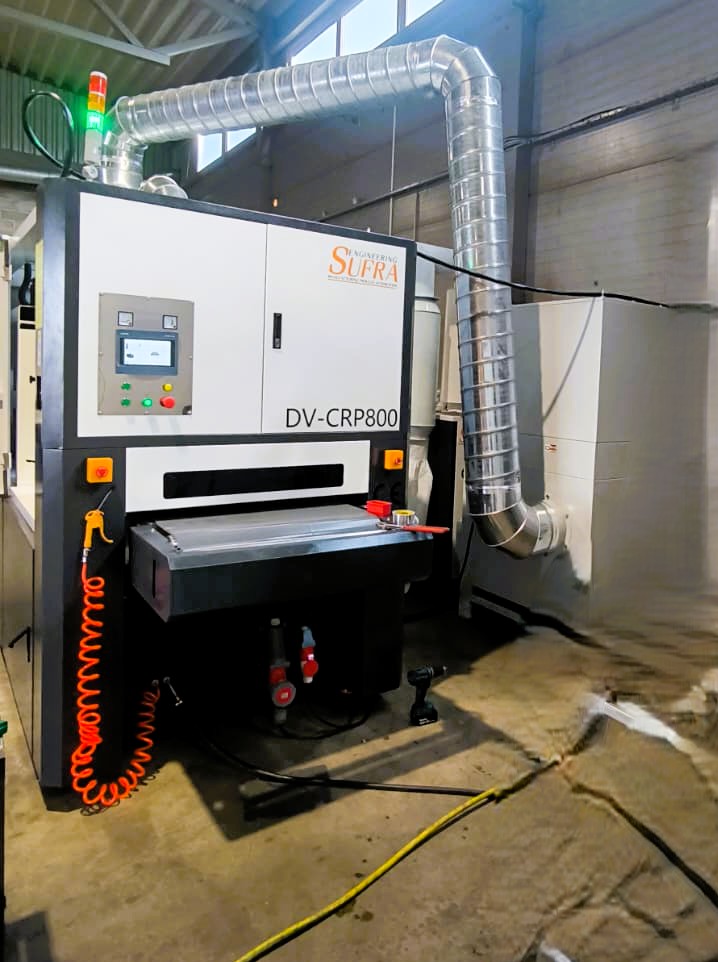

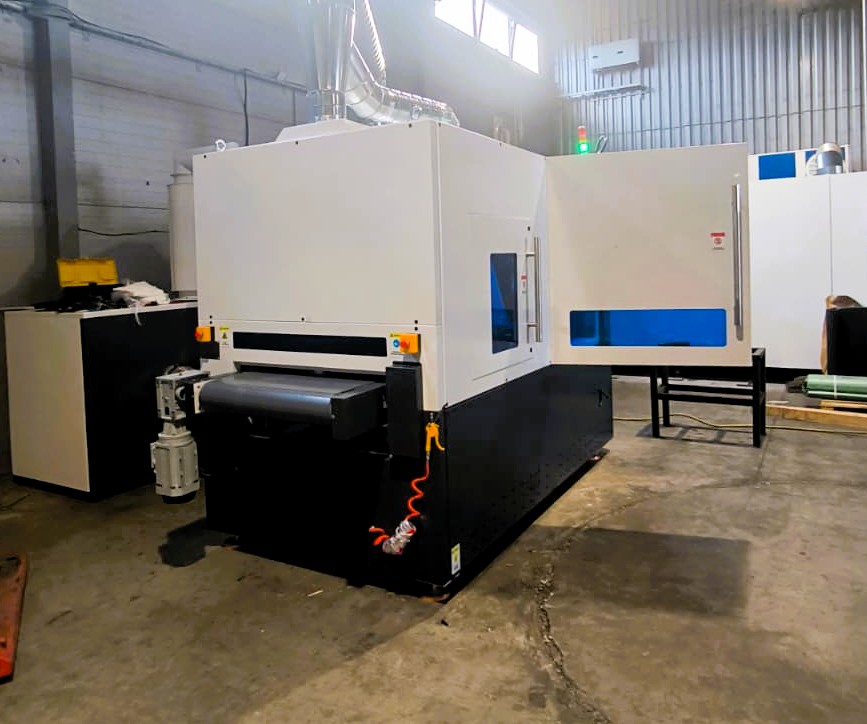

The Automatic Sheet Metal Deburring Machine is designed for efficient deburring, edge rounding and surface finishing of metal components. Installed in Riga, Latvia, this equipment combines slag removal, roller brush processing and abrasive belt grinding in one integrated system, helping manufacturers achieve consistent finishing quality and streamline metalworking operations.
The machine is suitable for processing carbon steel, stainless steel, aluminium, copper and other non-ferrous metals. It removes slag residue, burrs and sharp edges from workpieces produced by laser cutting, plasma cutting, gas cutting, stamping and other manufacturing processes. The combined processing system also supports surface polishing, scale removal and the creation of smooth, rounded edges around contours, corners and holes.
The machine uses a multi-stage processing principle. First, slag-removal discs eliminate larger slag particles and heavy burrs. Four universal roller brushes then round sharp edges and treat contours and holes, while the abrasive belt performs additional deburring and surface finishing. The slag-removal, roller-brush and abrasive-belt stations can be operated independently, allowing the processing sequence to be adapted to different workpiece thicknesses and finishing requirements.

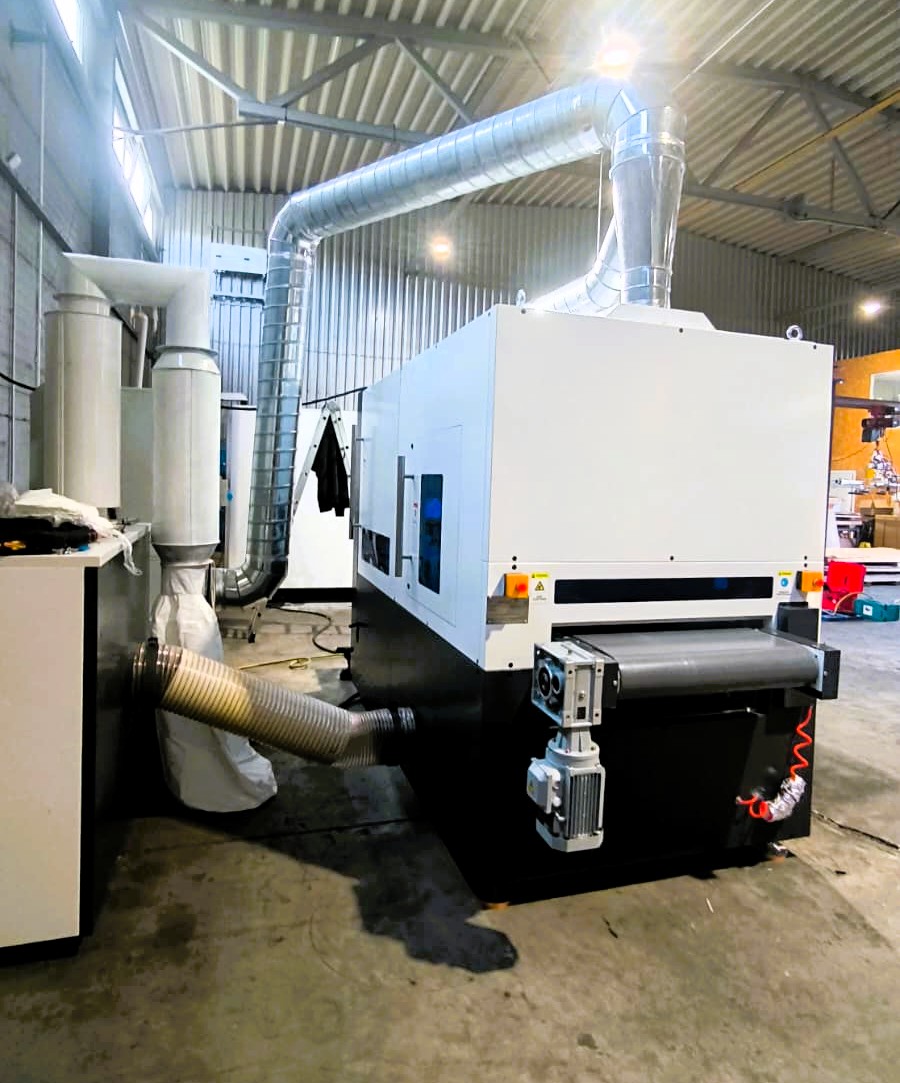

With a maximum working width of up to 800 mm, the machine accommodates metal sheets ranging from 0.7 to 80 mm in thickness. Its adjustable conveyor feed speed of 1–5 m/min allows operators to adapt throughput to the material and required finishing result. A wear-resistant, heat-resistant conveyor belt ensures stable workpiece transport, while the frequency-controlled drive enables flexible speed adjustment. An integrated wet dust collection system with a power rating of 6.6 kW captures airborne dust generated during processing, with a stated dust collection efficiency of up to 85%.
Key Features
- Combined processing system integrating slag removal, edge rounding and abrasive belt grinding
- Maximum working width of up to 800 mm, depending on configuration
- Processing thickness range of 0.7–80 mm
- Compatible with multiple metals, including carbon steel, stainless steel, aluminium, copper and other non-ferrous materials
- Multi-directional deburring of edges, corners, contours and holes

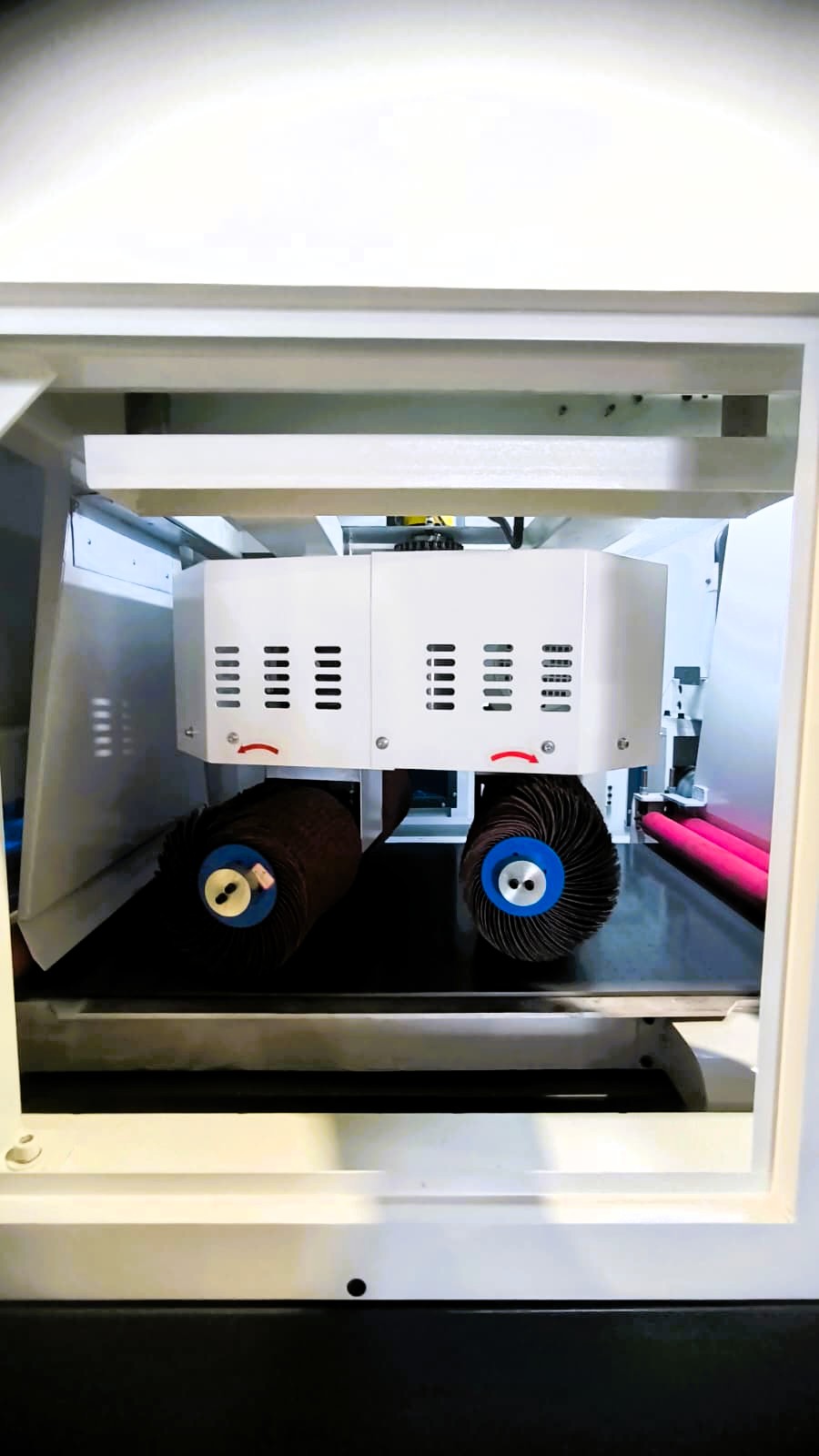

- Four universal roller brushes for edge rounding and consistent surface treatment
- Independent station control for flexible processing of workpieces with different thicknesses
- Adjustable conveyor feed speed of 1–5 m/min
- Abrasive belt dimensions of 1900 × 820 mm for the 800 mm configuration
- Integrated wet dust collection system rated at 6.6 kW, with up to 85% stated dust collection efficiency
- 380 V, three-phase, 50 Hz power supply
- Total installed power of 41 kW plus 6.6 kW for dust collection in the 800 mm configuration
Why Choose an Automatic Sheet Metal Deburring Machine?
Automated deburring and edge finishing help manufacturers reduce reliance on manual grinding, improve consistency and maintain a more efficient production workflow. By combining several processing stages in one machine, this solution can reduce handling between operations and deliver more uniform finishing results across batches of metal components.
Independent station control provides flexibility for different materials, thicknesses and surface requirements, while adjustable conveyor speed supports production planning. The integrated dust collection system also helps improve workplace conditions by capturing dust generated during processing.
For metalworking companies seeking to optimise post-cutting operations, this machine offers a practical approach to slag removal, burr elimination, edge rounding and surface finishing within a single production process.
